Double ( Pair) Roller Crusher

PURPOSES

It is a new type of efficient and energy-saving grinding equipment. The main feature is that the roller gap can be adjusted between 2-10mm, and the crushing particle size can be reliably controlled, not affected by the wear of vulnerable parts. After the roller skin is worn, it can be adjusted or repaired with a screw at any time; This machine adopts advanced universal transmission mechanism connection, thereby avoiding various fatal defects such as rolling, shaking, and jamming of the old type roller belt. Suitable for intermediate and fine crushing operations of hard, medium hard, and soft materials with compressive strength less than 300mpa and moisture content less than 35%. It can be widely used in industries such as mining, thermal power, cement, ceramics, metallurgy, chemical industry, building materials, etc. It has the characteristics of low maintenance costs, reliable performance, low dust, and low noise.

Principles

The double roller crusher uses two high-strength wear-resistant alloy rollers to crush materials through the high extrusion pressure generated by their relative rotation. After the materials enter the gap between the two rollers, they are subjected to the extrusion and shear forces caused by the relative rotation of the two rollers. Under the squeezing, shearing, and meshing, the materials are crushed into the required particle size and then discharged from the discharge port at the bottom of the machine.

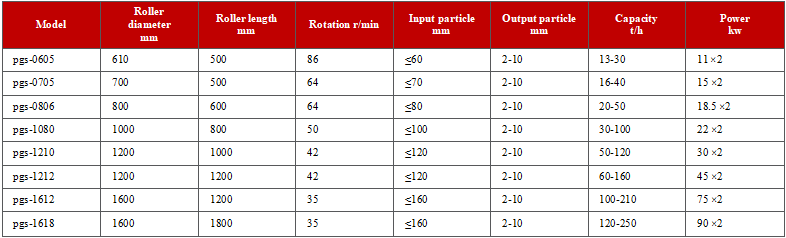

Technical Parameter
