GC series Jaw Crusher

INTRODUCTION

There are two series of models for GC series jaw crushers. The first type is the famous conventional jaw crusher, including GC3054 GC110、GC125、GC140。  The second type is specifically designed for the needs of small mobile crushing stations, including GC96 and GC106. All GC series jaw crushers are used to crush hard rocks. Regardless of the crushing needs, from hard and highly abrasive rocks to various recycled materials, you can find better solutions from the GC series jaw crushers of Vasoar.

FEATURES

Efficient kinematic performance and strong power: Good crushing performance also depends on good kinematic parameters. The GC series jaw crusher adopts a high centrifugal force and steep elbow plate inclination angle design, which makes the effective stroke at the bottom of the crushing chamber larger. Large stroke, appropriate rotational speed and flywheel inertia, as well as high crushing utilization can ensure better crushing performance. Produced under a small discharge port, the GC series jaw crusher can produce finer crushing products than other jaw crushers.

Modular and non welded frame structure: The Vasoar GC series jaw crushers adopt innovative modular and non welded frame structures, which endow the equipment with maximum fatigue resistance and multiple installation methods. Combined with high-quality cast steel components and first-class ball rolling bearings, it fully ensures the high yield, efficiency, and low cost of crushing operations.

Quick and safe adjustment of ore discharge port: The Vasoar GC series jaw crushers are equipped with a double wedge block ore discharge port adjustment system, which has been proven in the industry for its sturdy and fast adjustment advantages. The double wedge block ore discharge port adjustment system is simpler, safer, and faster than the old-fashioned gasket adjustment. The discharge port of the crusher can be manually adjusted within a few minutes using a wrench, without the need to deal with dirty and bulky gaskets.

Provide suitable jaw plates for specific applications: In order to adapt to various application fields, including traditional quarrying, mining, gravel, as well as the recycling of waste materials and asphalt, GC series jaw crushers have developed various corresponding jaw plates. The continuous optimization of jaw plate tooth shape and thickness, and the selection of appropriate manganese steel alloy materials not only increases production but also reduces practical costs.  Furthermore, Vasoar actively develops customized jaw and cheek plates for special purposes.

Low operating cost: The Vasoar GC series jaw crushers not only master good operational performance, but also reduce operating costs. Each feature of the GC series jaw crushers will have a direct impact on your cost bottom line, which means you will gain higher profits. Our users will deeply appreciate the uniqueness of GC series jaw crushers.

The best choice for underground installation: For underground installation, each major component of the GC series jaw crusher can be separately transported to the mine and the final assembly of the crusher can be completed underground. This feature can significantly shorten construction time and save costs. Underground installation only requires ordinary lifting equipment and can be completed in a relatively short time.

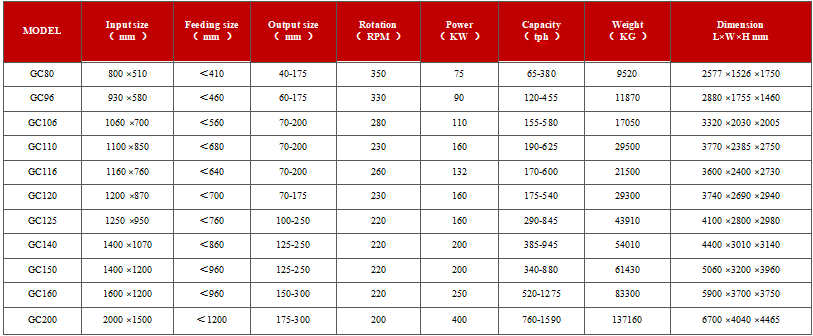

Technical Parameter
